    Bench Top Laboratory Glove Box For chemistry Universal Testing

    Ask Lasest Price
    Brand Name : SOPERSL
    Model Number : VGB780S
    Certification : CE.SGS.ISO
    Price : USD300-USD10000
    Payment Terms : D/P, Western Union
    Supply Ability : 3000PCS/MONTH
    Delivery Time : 5-10 WORKING DAYS FOR LCL
    • Product Details
    • Company Profile

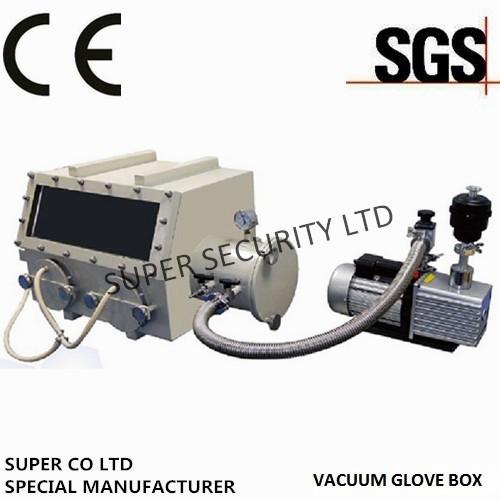

    Bench Top Laboratory Glove Box For chemistry Universal Testing

    Bench Top Laboratory Glove Box For semiconductor materials Handling ,chemistry Universal Testing


    Application:


    Vacuum glove box gives a sealed case. It can fill with insert gas such as nitrogen, argon after vacuuming.

    Heavy duty 304 stainless steel structure , tempered glass. Mainly used for oxidation and moisture, such as operating electronic balance precision instruments, dealing with semiconductor materials, researching processes in material science,chemistry .


    VGB780-4 is a stainless steel glove box with Airlock Chamber, Gauges andvacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging.


    Advantages:


    Siemens PLC control system with 6" touch screen display: easy to access all functions

    Recirculation system: closed loop gas circulation, oil free and vacuum tight

    Automatically pressure control: working pressure can be set in the range of +/-12mbar

    Automatically purging: easy to operate and save gas, as well safe for operating solvent.

    Equipped with 9 3/ 4"butyl gloves for immediate use

    Foot switch: box pressure can be regulated via foots witch

    Easy to access to gloves

    Data memo: automatically log system’s data

    Warranty:One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty



    Glove Box

    Chamber

    ·Dimensions: 780mm(W) x 650mm(D) x 900mm(H)

    Material: Stainless SUS304,3 MM( 11 gauge), which provide heavy duty structure for vacuum

    ·Max. Positive Pressure: 0.05 MPa

    ·Max. Vacuum Level: -0.05 Mpa

    Antechamber

    Dimension

    Stainless SUS304 , ø240mm, length =260mm, right side, with slidable tray inside

    Antechamber

    Pressure

    Max. Positive Pressure: 0.1 MPa

    Max. Vacuum Level: -0.1 Mpa

    Window

    Front Panel

    ·Dimension: 710mm(W) x 320mm(H), Removable for putting in devices

    1 Transparent Front Panel Removable tempered window with 2 glove ports (12mm)

    Glove box1 pairs of Latex gloves, 190mm length
    Lighting System·One e Lighting System (220V, 50Hz)
    Pressure Gauge1 Pressure Gauge on Antechamber brand
    KF ConnectorStandard KF-25, KF-40 connectors and needle valves

    Option

    1. Oxygen monitoring unit (0 -1000 PPM )

    2. Moisture monitoring unit(0-1000 PPM)

    3. Automatic Pressure Controller

    4. Automatic Humidity Controller (1-99%RH)

    5. Solvent removal system

    6. Open loop / Closed-loop HEPA Filters

    7. High speed vacuum pump (4L/S High speed vacuum pump)

    8. Gas Purification System

    Application Notes

    ·Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation

    ·Corrosive gases are prohibited as they will damage the sensors

    ·The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas

    ·By closing the vacuum flange, the glove box can be vacuumed by mechanical pump up to 0.5 torr before filling inert gas, (moisture can be below 180 ppm and oxygen below 200 ppm). Then you can save at least 1-2 tank of inert gas from purging at each operation

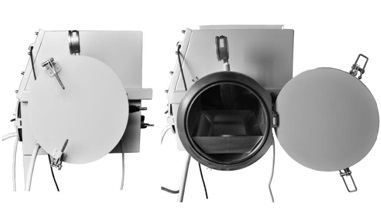

    SIDE VIEW

    DETAILS:



    STANDARD PACKAGE:


    No

    Description

    Qty.

    1

    VGB-780S SS Glove box

    1 unit

    2

    Power cable

    1 pair

    3

    Gloves (spare use)

    2 pcs

    4

    Vacuum rubber hose

    1 pcs

    5

    Sealing gasket of glove port (spare use)

    3 pcs

    6

    Sealing gasket of glove box door (spare use)

    2 pcs

    7

    Vacuum grease

    1 box

    8

    Glove clamps

    3 pcs

    9

    Hose clamps

    1 pack

    10

    Polyurethane tube

    1 pc

    11

    User’s manual CD

    1 pc
