    Customized Desiccant Nitrogen Dry Box Rustproof Dehumidification

    Ask Lasest Price
    Brand Name : SSL
    Model Number : DCN-S
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T or L/C at sight
    Supply Ability : 1600 per month
    Delivery Time : 7-10 Days after receive the payment
    • Product Details
    • Company Profile

    Customized Desiccant Nitrogen Dry Box Rustproof Dehumidification

    Customized Desiccant Nitrogen Dry Box Rustproof Dehumidification


    Applications:


    Its typical applications include the prevention and protection against all types of oxidation (rust), the prevention of the growth of fungus on optics, the dry preservation of lab materials and samples as well as the protection of MSDs (moisture sensitive devices) as per IPC/JEDEC J-STD-033 within the electronics industry.
    Suitable for storing: Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.
    It can prevent them from oxygen and mildew, which are widely used in laboratory, electronic industry, hospital, research department.


    Specifications:

    Customized N2 gas Cabinet- Doors Type

    Cabinets suitable for processing and storage of electronic components.

    Humidity range:1% ~ 60% RH

    Model :DCN Series

    Outside: W1200-3000 × D600-1000 × H1900mm

    Inside: W1198-2998 × D562-962 × H1713mm

    Sheet: 5pcs,Each with 150kg loading

    Power:85V-265V,50HZ/60HZ

    Weight: 220-400kg Capacity:1000L-3000L

    LED Display: yes(Honeywell)


    Remarks:

    All models can be chosed stainless material.

    With casters on the base

    Can choose Anti-ESD dark green color.

    Customized size accepted


    ELECTRONIC COMPONENT USE

    Features:

    1) Humudity adjustable, energy saving design digital LED-Honeywell display and control, all the setting can be justified at the touch of the UP and DOWN bottom.

    2) 1.0mm thickness steel body, rustproof paint, 3.2mm toughened glass, import sensor.

    3) Moisture absorbs continuously with sustention for 24hours

    Cost lowering through nitrogen (N2) gas replacement and combination N2 with other substance.

    4) Zinc alloy lock with plus pressure capability. Strong, rusty proof stainless 304 material. On the base truckle with brake .

    5) Slip layer board make the inter space adjustable.

    6) Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise.



    Digital Temp Display & RH Control

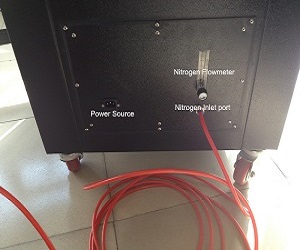

    Powder supply direct connection

    No need of battery

    Digital LED-Honeywell display and control, with UP and DOWN bottom.


    Competitive Advantage:

    Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise


    Any size and spec are available for our customized Auto Nitrogen Gas Cabinet

    For storing and keeping moisture sensitive device (MSD) and oxygen sensitive device (OSD)

    Fast dehumidifying speed, the humidity of inner cabinet can drop down under 10%RH in several minutes


    Using micro-controller unit (MCU) to acquire digital data and real time control the nitrogen gas supply. When the humidity is below the set point value, the system will switch off the nitrogen gas supply. Once the humidity is higher than the set point value, the system will switch on the nitrogen gas supply. It will economize nitrogen gas.
