Vacuum Laboratory Glove Box PLC control for Universal Testing
VGB600S is a stainless steel glove box with Airlock Chamber, Gauges
andvacuum Flanges, which allow glove box operate under vacuum to
remove moisture and oxygen without expensive inert gas purging.
1. MOCVD technology in the semiconductor industry. vcuum glove box
2. Special lamps (HID) development and production.vacuum glove box
3. Microelectronics, laser and plasma welding.vacuum glove box
4. OLED / PLED development and production.vacuum glove box
5. The development and production of lithium-ion batteries.vacuum glove box
6. Inorganic / Organic Chemistry Research.vacuum glove box
7. Metal halide / metal powder / ceramic powder research.vacuum glove box
8. Nanotechnology research materials.vacuum glove box
9. Catalyst.
Advantages:
Siemens PLC control system with 6" touch screen display: easy to
access all functions
Recirculation system: closed loop gas circulation, oil free and
vacuum tight
Automatically pressure control: working pressure can be set in the
range of +/-12mbar
Automatically purging: easy to operate and save gas, as well safe
for operating solvent.
Equipped with 9 3/ 4"butyl gloves for immediate use
Foot switch: box pressure can be regulated via foots witch
Easy to access to gloves
Data memo: automatically log system’s data
Warranty:One Year limited warranty with lifetime support Rusting
and damage due to improper storage condition or maintenance is not
covered by w arranty
Glove Box Chamber
| ·Case Material: Made of 11 gauge (3mm thickness) 304 stainless
steel sheet which provide heavy duty structure for vacuum ·Dimensions: 600mm(W) x 450mm(D) x 420mm(H) ·Max. Positive Pressure: 810 Torr (1.1 atm) Note: Gloves cannot work if pressure is higher than 810 Torr ·Max. Vacuum Level: 0.5 Torr Note: Stainless Steel case may deform at higher vacuum level |

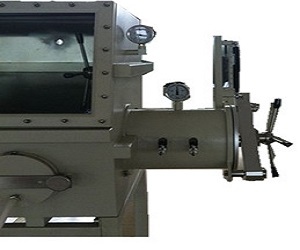

Air-lock Chamber with Air lift | ·Dimensions: 210mm(ID) x 260mm(D) ·Max. Vacuum Level: 0.05 Torr |
Transparent Front Panel | ·Dimension: 500mm(W) x 165mm(H) ·Removable for putting in devices |
Leakage Rate in Glove Box Chamber | < 3 Torr/hour |
Power Extension | ·One extension socket (Max power 1500W) is installed in the glove
box main chamber. |
Gloves | ·Glove Port size: 190mm ·Included (with increased stretching, bending ability and tear
strength, and offer strong resistance to aromatics, hydrocarbons, solvents,
fats, and acids) ·Clamps and sealing flanges included |
Vacuum pump and fittings (Optional) | Vacuum pump and fittings are not included. |
Application Notes | ·Always check the joints, gloves, sealing elements, and pipelines
for air-tightness before and during the operation ·Corrosive gases are prohibited as they will damage the sensors ·The inlet and outlet of the Air-lock Chamber must not be opened at
the same time to prevent contamination by the external gas ·By closing the vacuum flange, the glove box can be vacuumed by
mechanical pump up to 0.5 torr before filling inert gas, (moisture
can be below 180 ppm and oxygen below 200 ppm). Then you can save
at least 1-2 tank of inert gas from purging at each operation |
STANDARD PACKAGE:
No | Description | Qty. |
1 | VGB-600S SS Glove box | 1 unit |
2 | Power cable | 1 pair |
3 | Gloves (spare use) | 2 pcs |
4 | Vacuum rubber hose | 1 pcs |
5 | Sealing gasket of glove port (spare use) | 3 pcs |
6 | Sealing gasket of glove box door (spare use) | 2 pcs |
7 | Vacuum grease | 1 box |
8 | Glove clamps | 3 pcs |
9 | Hose clamps | 1 pack |
10 | Polyurethane tube | 1 pc |
11 | User’s manual CD | 1 pc |
