Chemical Customize Glove Box with Gas Purification System for Lab
usage with two Body
Application:
Box and gas purification system, form a sealed environment, filled
with Inert gas or nitrogen to the cabinets, and circulation to
remove internal active substances, allowing the system always
maintain high cleanliness and high purity inert gas environment
(water, oxygen are equipment a 1 ppm below)
Mainly for O2, H2O clearing
Advantages:
Anhydrous, anaerobic and clean, ultra-clean work environment
The R&D and production of batteries and battery materials
(lithium-ion battery, battery, solar cell, the lithium iron
phosphate, etc.)
The R&D and manufacturing of special lamps: HID lamps, metal
halide, ceramic metal halide.
R&D/University
Welding: resistance welding, TIG welding, laser welding, plasma
welding, brazing.
OLED/ OPV R&D and production.
The development and production of medical supplies,Pharmaceuticals
Development and production of the super capacitor.
Fine chemicals, nuclear industry, military
The new energy and new materials development and production.

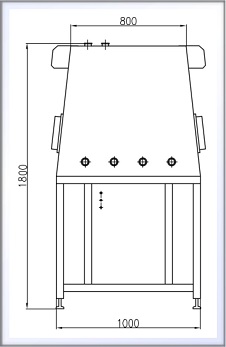

GLOVE BOX DIMENSIONS
Soper has many standard sizes of glovebox, single or double sided
to different use.
Length size
SSLX-2
SSLX-3
SSLX- /760 SSLX- /100
SSLX-4
SSLX-4I (Module combination)
| Model | Cabinet Size (mm) L×W×H | The total size of equipment (mm) L×W×H |
| SSLX-2 | 1220 × 760 × 900 | 1935 × 800 × 1000 |
| SSLX-3 | 1500 × 760 × 900 | 2215 × 800 × 1000 |
| SSLX-4 | 1900 × 760 × 900 | 2615 × 800 × 1000 |
| SSLX-4I | 2440 × 760 × 900 | 3155 × 800 × 1000 |
| SSLX-8I | 4880 × 760 × 900 | 5595 × 800 × 1000 |
| SSLX-2D | 1220 × 1000 × 900 | 1935 × 1000 × 1000 |
| SSLX-3D | 1500 × 1000 × 900 | 2215 × 1000 × 1000 |
| SSLX-4D | 1900 × 1000 × 900 | 2615 × 1000 × 1000 |
Specification
| Model | Cabinet Size (mm) L×W×H | The total size of equipment (mm) L×W×H |
| SSLX-2 | 1220 × 760 × 900 | 1935 × 800 × 1000 |
| SSLX-3 | 1500 × 760 × 900 | 2215 × 800 × 1000 |
| SSLX-4 | 1900 × 760 × 900 | 2615 × 800 × 1000 |
| SSLX-4I | 2440 × 760 × 900 | 3155 × 800 × 1000 |
| SSLX-8I | 4880 × 760 × 900 | 5595 × 800 × 1000 |
| SSLX-2D | 1220 × 1000 × 900 | 1935 × 1000 × 1000 |
| SSLX-3D | 1500 × 1000 × 900 | 2215 × 1000 × 1000 |
| SSLX-4D | 1900 × 1000 × 900 | 2615 × 1000 × 1000 |
Main Glove Box Chamber
| Material | Stainless steel type 304, thickness 3mm (11 gauge & 1/8’’) |
| External surface | White Paint |
| Inside dimension | ·Length: 1220mm/ 1500mm/ 1900mm/ 2440mm 48.0’’/ 59.1’’/ 74.8’’/ 96.0’’ ·Depth: 750mm/ 1100mm 29.5’’/39.4’’ .Height: 900mm/ 35.4’’ |
| Sight Window | Safety Window, thickness 10mm/ 0.4’’ |
| Gloves Port | POM (Polyoxymenthylene), double O-ring seal,190mm/ 4’’ Diameter |
| Gloves | Butyl, 7’’ or 8’’ cuff dia., 0.015 ‘’ , thickness 0.015’’, length
32’’ |
| Dust Filter | HEPA 0.3 m, one gas inlet, one gas outlet. |
| Shelving | Stainless Steel material, two shelves |
| Box Light | Fluorescent lamp, front and top mounted |
| Feed-connection | DN40KF, One Power cord feed-connection, 3-4 standby blind flanges |
Main AnteChamber
| Size | Diameter: 385mm (15.2’’) Length 600mm(23.6’’) |
| Material | SS304 Stainless Steel |
| External surface | White paint (Brushed Stainless steel available) |
| Internal surface | Brushed Stainless steel |
| Sliding tray | SS304 Stainless Steel |
| Double Door | Hard alloy, 10mm thick(0.4’’); Vertical operation |
| Manometer | Analog display |
| Operation | Touch Screen Automatic operation via solenoid valves |
Mini AnteChamber
| Size | Diameter: 168mm (6.6’’) or 115mm (4.5’’) Length 300mm(11.8’’) |
| Material | SS304 Stainless Steel |
| External surface | White paint (Brushed Stainless steel available) |
| Internal surface | Brushed Stainless steel |
| Double Door | Hinged (Interlocked double door available) |
| Manometer | Analog display |
| Operation | Touch Screen Automatic operation via solenoid valves |
Gas Purification System
Gas purification system connect with seal container, equipment,
product line, to be a cycling environment. Purification systems
purify inert gas in the column to reach no water and no oxygen
environment.
System includes the single purification column, double purification
column,completely automatic and multi- columns and other many kinds
and standards purification systems. SOPERSL® gas purification
system designed for independent activity modules can be used in
conjunction with any one of the glove box.
| Purifier |
| Function | Airtight Steel, Removal of H2O and O2 to Less than 1 ppm moisture
and oxygen |
| Container material | 304 Stainless Steel |
| Absorber material | 5kg Copper catalyst 5kg Molecular sieve |
| Capacity | 60L oxygen 2Kg moisture |
| Attainable purity | ≤1ppm |
| Gas Circulation |
| Working gas | Nitrogen, Argon or Helium |
| Encapsulated Blower | 90m3/h |
| Regeneration |
| Operation | PLC automatically controlled |
| Regeneration | working gas mixed with Hydrogen 5-10% |
| Model | Description | Box Size (L W H)mm |
| SLGP-1 | Single | 700 × 700×860 |
| SLGP-2 | Double | 900 × 700×860 |
Working conditions and performance indicators
| Power supply | 220V(AC) 50HZ |
| Maximum Power | ≈3000W |
| Gas | the working gas: N2, Ar, He etc.inert gas |
| control gas: compressed air or inert gas |
| Reducing gas: working gas mixed of hydrogen (H2). |
Cabinets water content in the standard case (Note: The standard case is an atmospheric pressure, a constant
temperature of 20 degrees) | ≤1ppm |
Cabinets oxygen content in the standard case (Note: The standard case is an atmospheric pressure, a constant
temperature of 20 degrees) | ≤1ppm |
| airlock withstand a minimum vacuum value | ≥100pa |
| The leak rate | ≤0.001Vol%/ h |
Power Supply:220V(AC) 50HZ Max. Power:3000W
Remarks:Price include Purification system &Water probe &Oxygen
probe &Vacuum Pump
Standard Accessories: Brand
PLC & Touch Screen: Germany SIEMENS
Water Probe: American AII
Oxygen Probe: British MICHELL
Vacuum Pump: Japan ULAVC
